สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Kelong
ได้รับการรับรอง:
ISO9001 / IRIS
หมายเลขรุ่น:
KL61
Contact Us
•อุตสาหกรรมเหล็กและเหล็ก
• เครื่องจักรเคลื่อนย้าย
• กระป๋องน้ําหนัก

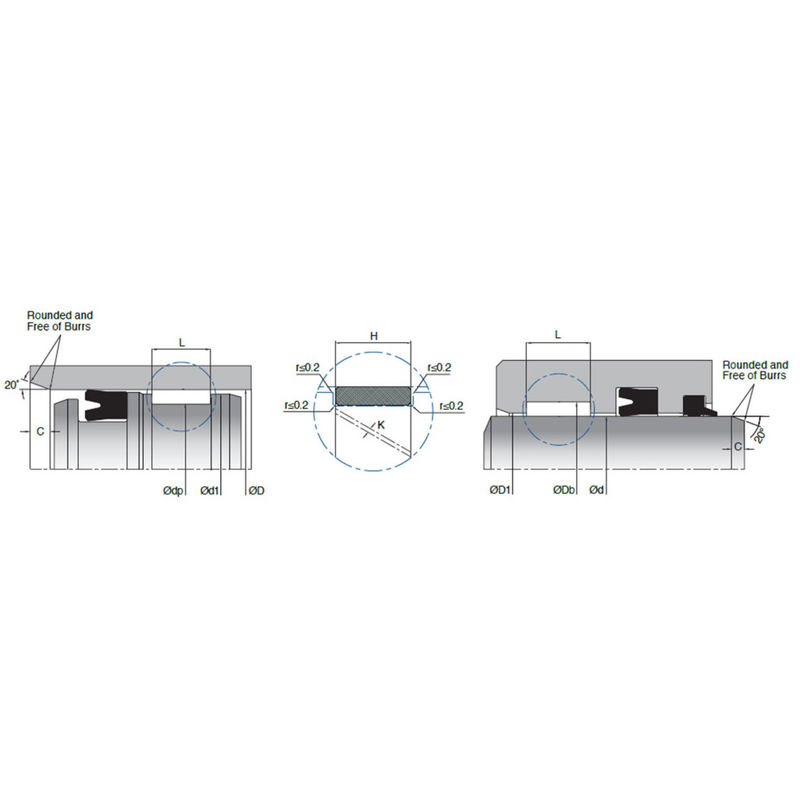

| d ((f8) dp ((h8) | Db(H8) D(H9) | L (+0.2/-0) | H | d1 (h9) | D1 (H9) | สาร | |
| KL61-040 | 40 | 45 | 9.7 | 9.5 | 43.2 | 41.8 | Phenolics ARAMID |
| KL61-050 | 50 | 55 | 9.7 | 9.5 | 53.2 | 51.8 | Phenolics ARAMID |
| KL61-050/1 | 50 | 55 | 15 | 14.8 | 53.2 | 51.8 | Phenolics ARAMID |
| KL61-055 | 55 | 60 | 15 | 14.8 | 58.2 | 56.8 | Phenolics ARAMID |
| KL61-055/1 | 55 | 60 | 9.7 | 9.5 | 58.2 | 56.8 | Phenolics ARAMID |
| KL61-058 | 58 | 63 | 9.7 | 9.5 | 61.2 | 59.8 | Phenolics ARAMID |
| KL61-060 | 60 | 65 | 15 | 14.8 | 63.2 | 61.8 | Phenolics ARAMID |
| KL61-060/1 | 60 | 65 | 9.7 | 9.5 | 63.2 | 61.8 | Phenolics ARAMID |
| KL61-063 | 63 | 68 | 9.7 | d | 66.2 | 64.8 | Phenolics ARAMID |
| KL61-063/1 | 63 | 68 | 15 | 14.8 | 66.2 | 64.8 | Phenolics ARAMID |
| KL61-065 | 65 | 70 | 15 | 14.8 | 68.2 | 66.8 | Phenolics ARAMID |
| KL61-065/1 | 65 | 70 | 9.7 | 9.5 | 68.2 | 66.8 | Phenolics ARAMID |
| KL61-070 | 70 | 75 | 9.7 | 9.5 | 73.2 | 71.8 | Phenolics ARAMID |
| KL61-070/1 | 70 | 75 | 15 | 14.8 | 73.2 | 71.8 | Phenolics ARAMID |
| KL61-075 | 75 | 80 | 9.7 | 9.5 | 78.2 | 76.8 | Phenolics ARAMID |
| KL61-075/1 | 75 | 80 | 15 | 14.8 | 78.2 | 76.8 | Phenolics ARAMID |
| KL61-080 | 80 | 85 | 9.7 | 9.5 | 83.2 | 81.8 | Phenolics ARAMID |
| KL61-080/1 | 80 | 85 | 15 | 14.8 | 83.2 | 81.8 | Phenolics ARAMID |
| KL61-085 | 85 | 90 | 9.7 | 9.5 | 88.2 | 86.8 | Phenolics ARAMID |
| KL61-085/1 | 85 | 90 | 15 | 14.8 | 88.2 | 86.8 | Phenolics ARAMID |
| KL61-090 | 90 | 95 | 15 | 14.8 | 93.2 | 91.8 | Phenolics ARAMID |
| KL61-090/1 | 90 | 95 | 9.7 | 9.5 | 93.2 | 91.8 | Phenolics ARAMID |
| KL61-095 | 95 | 100 | 9.7 | 9.5 | 98.2 | 96.8 | Phenolics ARAMID |
| KL61-095/1 | 95 | 100 | 15 | 14.8 | 98.2 | 96.8 | Phenolics ARAMID |
| KL61-100 | 100 | 105 | 15 | 14.8 | 103.2 | 101.8 | Phenolics ARAMID |
| KL61-100/1 | 100 | 105 | 9.7 | 9.5 | 103.2 | 101.8 | Phenolics ARAMID |
| KL61-105 | 105 | 110 | 9.7 | 9.5 | 108.2 | 106.8 | Phenolics ARAMID |
| KL61-105/1 | 105 | 110 | 15 | 14.8 | 108.2 | 106.8 | Phenolics ARAMID |
| KL61-110 | 110 | 115 | 9.7 | 9.5 | 113.2 | 111.8 | Phenolics ARAMID |
| KL61-110/1 | 110 | 115 | 15 | 14.8 | 113.2 | 111.8 | Phenolics ARAMID |
| KL61-110/2 | 110 | 115 | 8.1 | 7.9 | 113.2 | 111.8 | Phenolics ARAMID |
| KL61-115 | 115 | 120 | 9.7 | 9.5 | 118.2 | 116.8 | Phenolics ARAMID |
| KL61-115/1 | 115 | 120 | 15 | 14.8 | 118.2 | 116.8 | Phenolics ARAMID |
| KL61-115/2 | 115 | 120 | 8.1 | 7.9 | 118.2 | 116.8 | Phenolics ARAMID |
| KL61-120 | 120 | 125 | 9.7 | 9.5 | 123.2 | 121.8 | Phenolics ARAMID |
| KL61-120/1 | 120 | 125 | 15 | 14.8 | 123.2 | 121.8 | Phenolics ARAMID |
| KL61-120/2 | 120 | 125 | 8.1 | 7.9 | 123.2 | 121.8 | Phenolics ARAMID |
| KL61-125 | 125 | 130 | 9.7 | 9.5 | 128.2 | 126.8 | Phenolics ARAMID |
| KL61-125/1 | 125 | 130 | 15 | 14.8 | 128.2 | 126.8 | Phenolics ARAMID |
| KL61-125/3 | 125 | 130 | 14.2 | 14 | 128.2 | 126.8 | Phenolics ARAMID |
| KL61-130 | 130 | 135 | 9.7 | 9.5 | 133.2 | 131.8 | Phenolics ARAMID |
| KL61-130/1 | 130 | 135 | 15 | 14.8 | 133.2 | 131.8 | Phenolics ARAMID |
| KL61-130/3 | 130 | 135 | 8.1 | 7.9 | 133.2 | 131.8 | Phenolics ARAMID |
| KL61-135 | 135 | 140 | 9.7 | 9.5 | 138.2 | 136.8 | Phenolics ARAMID |
| KL61-135/1 | 135 | 140 | 15 | 14.8 | 138.2 | 136.8 | Phenolics ARAMID |
| KL61-135/2 | 135 | 140 | 8.1 | 7.9 | 138.2 | 136.8 | Phenolics ARAMID |
| KL61-140 | 140 | 145 | 9.7 | 9.5 | 143.2 | 141.8 | Phenolics ARAMID |
| KL61-140/1 | 140 | 145 | 15 | 14.8 | 143.2 | 141.8 | Phenolics ARAMID |
| KL61-140/3 | 140 | 145 | 20 | 19.8 | 143.2 | 141.8 | Phenolics ARAMID |
| KL61-145 | 145 | 150 | 9.7 | 9.5 | 148.2 | 146.8 | Phenolics ARAMID |
| KL61-145/1 | 145 | 150 | 15 | 14.8 | 148.2 | 146.8 | Phenolics ARAMID |
| KL61-150 | 150 | 155 | 15 | 14.8 | 153.2 | 151.8 | Phenolics ARAMID |
| KL61-150/1 | 150 | 155 | 9.7 | 9.5 | 153.2 | 151.8 | Phenolics ARAMID |
| KL61-150/2 | 150 | 155 | 12.5 | 12.3 | 153.2 | 151.8 | Phenolics ARAMID |
| KL61-155 | 155 | 160 | 9.7 | 9.5 | 158.2 | 156.8 | Phenolics ARAMID |
| KL61-155/1 | 155 | 160 | 15 | 14.8 | 158.2 | 156.8 | Phenolics ARAMID |
| KL61-160 | 160 | 165 | 9.7 | 9.5 | 163.2 | 161.8 | Phenolics ARAMID |
| KL61-160/1 | 160 | 165 | 15 | 14.8 | 163.2 | 161.8 | Phenolics ARAMID |
| KL61-164 | 164 | 170 | 9.7 | 9.5 | 167.6 | 166.4 | Phenolics ARAMID |
| KL61-165 | 165 | 170 | 9.7 | 9.5 | 168.2 | 166.8 | Phenolics ARAMID |
| KL61-165/1 | 165 | 170 | 15 | 14.8 | 168.2 | 166.8 | Phenolics ARAMID |
| KL61-170 | 170 | 175 | 9.7 | 9.5 | 173.2 | 171.8 | Phenolics ARAMID |
| KL61-170/1 | 170 | 175 | 15 | 14.8 | 173.2 | 171.8 | Phenolics ARAMID |
| KL61-174 | 174 | 180 | 15 | 14.8 | 177.6 | 176.4 | Phenolics ARAMID |
| KL61-175 | 175 | 180 | 9.7 | 9.5 | 178.2 | 176.8 | Phenolics ARAMID |
| KL61-175/1 | 175 | 180 | 15 | 14.8 | 178.2 | 176.8 | Phenolics ARAMID |
| KL61-180 | 180 | 185 | 15 | 14.8 | 183.2 | 181.8 | Phenolics ARAMID |
| KL61-180/1 | 180 | 185 | 9.7 | 9.5 | 183.2 | 181.8 | Phenolics ARAMID |
| KL61-184 | 184 | 190 | 15 | 14.8 | 187.6 | 186.4 | Phenolics ARAMID |
| KL61-185 | 185 | 190 | 9.7 | 9.5 | 188.2 | 186.8 | Phenolics ARAMID |
| KL61-185/1 | 185 | 190 | 15 | 14.8 | 188.2 | 186.8 | Phenolics ARAMID |
| KL61-190 | 190 | 195 | 9.7 | 9.5 | 193.2 | 191.8 | Phenolics ARAMID |
| KL61-190/1 | 190 | 195 | 15 | 14.8 | 193.2 | 191.8 | Phenolics ARAMID |
| KL61-194 | 194 | 200 | 20 | 19.8 | 197.6 | 196.4 | Phenolics ARAMID |
| KL61-195 | 195 | 200 | 9.7 | 9.5 | 198.2 | 196.8 | Phenolics ARAMID |
| KL61-195/1 | 195 | 200 | 15 | 14.8 | 198.2 | 196.8 | Phenolics ARAMID |
| KL61-209 | 209 | 215 | 20 | 19.8 | 212.6 | 211.4 | Phenolics ARAMID |
| KL61-210 | 210 | 215 | 25 | 24.5 | 213.2 | 211.8 | Phenolics ARAMID |
| KL61-215 | 215 | 220 | 15 | 14.8 | 218.2 | 216.8 | Phenolics ARAMID |
| KL61-219 | 219 | 225 | 20 | 19.8 | 222.6 | 221.4 | Phenolics ARAMID |
| KL61-224 | 224 | 230 | 25 | 24.5 | 227.6 | 226.4 | Phenolics ARAMID |
| KL61-229 | 229 | 235 | 20 | 19.8 | 232.6 | 231.4 | Phenolics ARAMID |
| KL61-234 | 234 | 240 | 25 | 24.5 | 237.6 | 236.4 | Phenolics ARAMID |
| KL61-235 | 235 | 240 | 25 | 24.5 | 238.2 | 236.8 | Phenolics ARAMID |
| KL61-240 | 240 | 248 | 25 | 24.5 | 245 | 243 | Phenolics ARAMID |
| KL61-244 | 244 | 250 | 25 | 24.5 | 247.6 | 246.4 | Phenolics ARAMID |
| KL61-245/1 | 245 | 250 | 25 | 24.5 | 248.2 | 246.8 | Phenolics ARAMID |
| KL61-245/2 | 245 | 250 | 15 | 14.8 | 248.2 | 246.8 | Phenolics ARAMID |
| KL61-245/3 | 245 | 250 | 20 | 19.8 | 248.2 | 246.8 | Phenolics ARAMID |
| KL61-250 | 250 | 255 | 40 | 39.5 | 253.2 | 251.8 | Phenolics ARAMID |
| KL61-254 | 254 | 260 | 25 | 24.5 | 257.6 | 256.4 | Phenolics ARAMID |
| KL61-254/1 | 254 | 260 | 30 | 29.5 | 257.6 | 256.4 | Phenolics ARAMID |
| KL61-260 | 260 | 265 | 25 | 24.5 | 263.2 | 261.8 | Phenolics ARAMID |
| KL61-279 | 279 | 285 | 25 | 24.5 | 282.6 | 281.4 | Phenolics ARAMID |
| KL61-280 | 280 | 285 | 25 | 24.5 | 283.2 | 281.8 | Phenolics ARAMID |
| KL61-294 | 294 | 300 | 35 | 34.5 | 297.6 | 296.4 | Phenolics ARAMID |
| KL61-295 | 295 | 300 | 25 | 24.5 | 298.2 | 296.8 | Phenolics ARAMID |
| KL61-315 | 315 | 320 | 25 | 24.5 | 318.2 | 316.8 | Phenolics ARAMID |
