สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Kelong
ได้รับการรับรอง:
ISO9001 / IRIS
หมายเลขรุ่น:
KL50
Contact Us

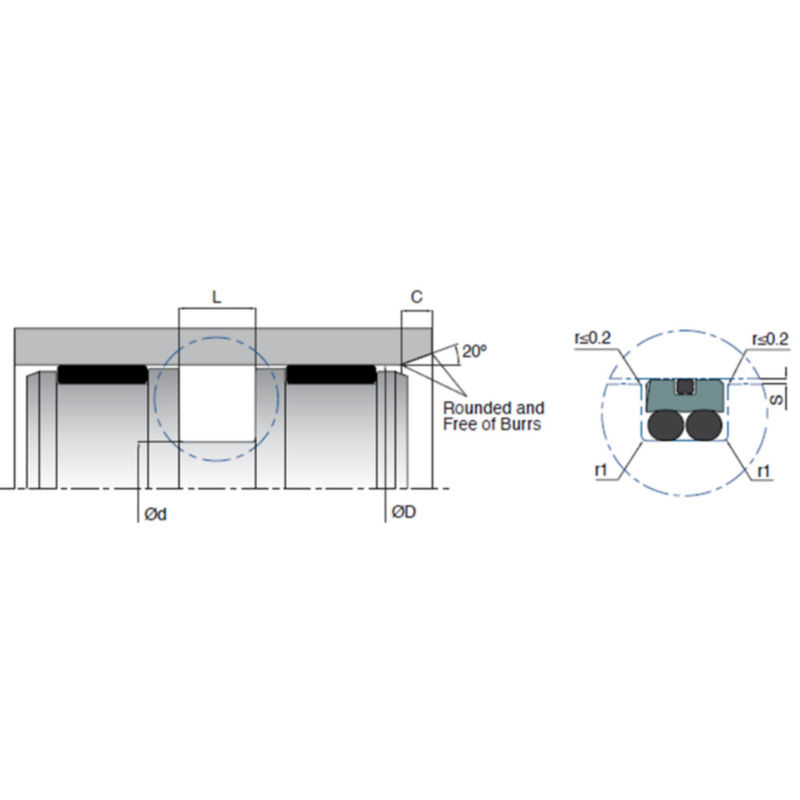

| D (H9) | d (h9) | L (+0.2/-0) | r1 | C | O-ring | รังสี | สาร | |
| KL50-040 | 40 | 30 | 6.3 | 0.6 | 3 | 28.25x2.62 | 34.65x178 | PTFE |
| KL50-045 | 45 | 35 | 6.3 | 0.6 | 3 | 34.59x262 | 41.00x178 | PTFE |
| KL50-050 | 50 | 40 | 6.3 | 0.6 | 3 | 39.34x262 | 44.17x178 | PTFE |
| KL50-055 | 55 | 45 | 6.3 | 0.6 | 3 | 44.12x262 | 50.52x178 | PTFE |
| KL50-060 | 60 | 50 | 6.3 | 0.6 | 3 | 48.90x2.62 | 56.87x178 | PTFE |
| KL50-063 | 63 | 53 | 6.3 | 0.6 | 3 | 52.07x262 | 56.87x178 | PTFE |
| KL50-070 | 70 | 60 | 6.3 | 0.6 | 3 | 58.42x262 | 63.22x178 | PTFE |
| KL50-080 | 80 | 67 | 8.3 | 1 | 6 | 63.09x353 | 72.69x262 | PTFE |
| KL50-085 | 85 | 72 | 8.3 | 1 | 6 | 69.85x353 | 75.87x262 | PTFE |
| KL50-090 | 90 | 77 | 8.3 | 1 | 6 | 75.80x353 | 82.22x262 | PTFE |
| KL50-100 | 100 | 87 | 8.3 | 1 | 6 | 85.32x353 | 94.92x262 | PTFE |
| KL50-105 | 105 | 92 | 8.3 | 1 | 6 | 91.67x353 | 94.92x262 | PTFE |
| KL50-110 | 110 | 97 | 8.3 | 1 | 6 | 94.84x353 | 101.27x262 | PTFE |
| KL50-125 | 125 | 112 | 8.3 | 1 | 6 | 110.72x353 | 120.32x262 | PTFE |
| KL50-130 | 130 | 117 | 8.3 | 1 | 6 | 113.90x353 | 126.67x262 | PTFE |
| KL50-150 | 150 | 132 | 12.3 | 1.3 | 8 | 130.20x533 | 145.65x353 | PTFE |
| KL50-160 | 160 | 142 | 12.3 | 1.3 | 8 | 139.07x533 | 145.65x353 | PTFE |
| KL50-180 | 180 | 162 | 12.3 | 1.3 | 8 | 158.12x533 | 164.70x353 | PTFE |
| KL50-210 | 210 | 192 | 12.3 | 1.3 | 8 | 189.87x533 | 200.00x353 | PTFE |
| KL50-220 | 220 | 202 | 12.3 | 1.3 | 8 | 202.57x533 | 209.15x353 | PTFE |
| KL50-250 | 250 | 232 | 12.3 | 1.3 | 8 | 227.97x533 | 234.54x353 | PTFE |
| KL50-280 | 280 | 262 | 12.3 | 1.3 | 8 | 253.57x533 | 266.30x353 | PTFE |
| KL50-300 | 300 | 282 | 12.3 | 1.3 | 8 | 278.77x533 | 278.99x353 | PTFE |
| KL50-320 | 320 | 302 | 12.3 | 1.3 | 8 | 291.47x533 | 304.39x353 | PTFE |
| KL50-450 | 450 | 432 | 12.3 | 1.3 | 8 | 425.00x533 | 430.66x353 | PTFE |
